●主要液壓部件全部進口! The main hydraulic components are all imported!
●每天工作量少省5個人工。Save 5 labours at least every day
●不用攪拌機每天省電100度! Don't need electric concrete mixer, save electricity up to 100 degrees every day
●不用混凝土運輸車! Don't need concrete mixer truck anymore
●不用裝載機上料 ! Don't need wheel loader to load material anymore!
整車參數 Vehicle Parameters
外形尺寸(LxWxH) 4420 * 1870 * 2750
Overall Dimensions ( L x W x H)
軸距 2900
Wheelbase (mm)
整備質量 4500
Curb Weight(kg）
驅動形式 變矩器Torque converter
Drive Form
高車速(km/h) 30
Maximum Speed(km/h)
大爬坡度(°) 30°
Maximum Gradeability
小轉彎半徑 5300
Minimum Turning Radius (mm)
小離地間隙 380
Minimum Ground Clearance(mm)
發動機Diesel Engine
型號:云內4102增壓
額定功率:76-78KW
Model : yunnei4102 Turbo-charged Rated Power:76-78kw
變速箱Gearbox
型號:ZL-265變速箱
檔位:4前進 4后退
Model:ZL-265 Power Shift Gearbox Gearshift : 4 forward 4 back
常規參數Conventional parameters

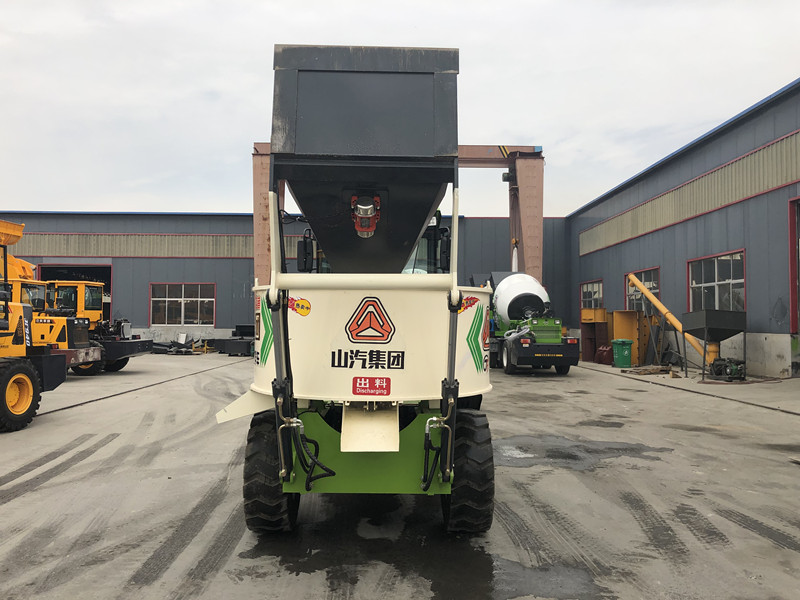

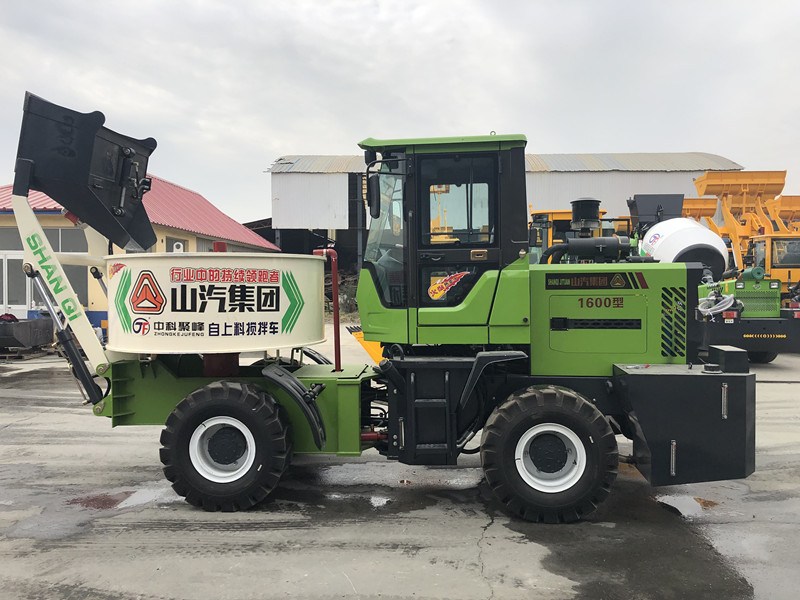

設備型號:JBC-1600
Equipment Model : JBC-1600
維護加注量Service Refill Capacities
燃油箱:60升
液壓系統總?cè)萘?60升
機油:16升
Fuel Tank : 60 liters
Total Hydraulic System Capacity : 60 liters
Oil : 16 liters
液壓系統參數Parameters of Hydraulic System
泵:CBFC 32/50 Dual Gear Pump : CBFC 32 / 50
馬達:BM5-160 Hydraulic Motor : BM5-160
供水系統參數Water Supply System Parameters
水箱容積:550L
供水方式:時間繼電器
Tank Volume : 550L
Water Supply : Time Relay
攪拌和卸載Mixing and Unloading
滾筒幾何容量:....................1600L 滾筒旋轉速度:....................8-20轉/分鐘 混凝土產量:....................1.6立方米/罐
“滾筒旋轉通過齒輪泵和開路中的擺線液壓馬達實現,在操作室內和攪拌機后部擁有手動電氣閥。滾筒通過2個雙作用千斤頂升水平位置。卸載溜槽通過1個手動可調式手柄控制傾斜,可以90°旋轉,但是不能和攪拌滾筒的傾斜操作同步進行。可拆卸溜槽可以保證直接通過料斗卸載。作為標準配置提供2個溜槽延長部件。
?Mixing Drum Geometrical Capacity:....................1600L Drum Rotation Speed:....................8-20rpm Concrete Yield:....................1.6 m3 / Batch
The drum rotation is achieved by gear pump and cycloidal hydraulic motor in open circuit with a manual electric valve in the driver's cabin and in the rear of the mixer. The drum risesto horizontal position through two double- -acting jacks. The unloading chute is tilted by a manually adjustable handle and can be rotated by 90 ", but can not be synchronized withthe tilting operation of mixing drum. Removable chutes ensure unloading directly through the hopper. Two chute extensions are provided as standard.
